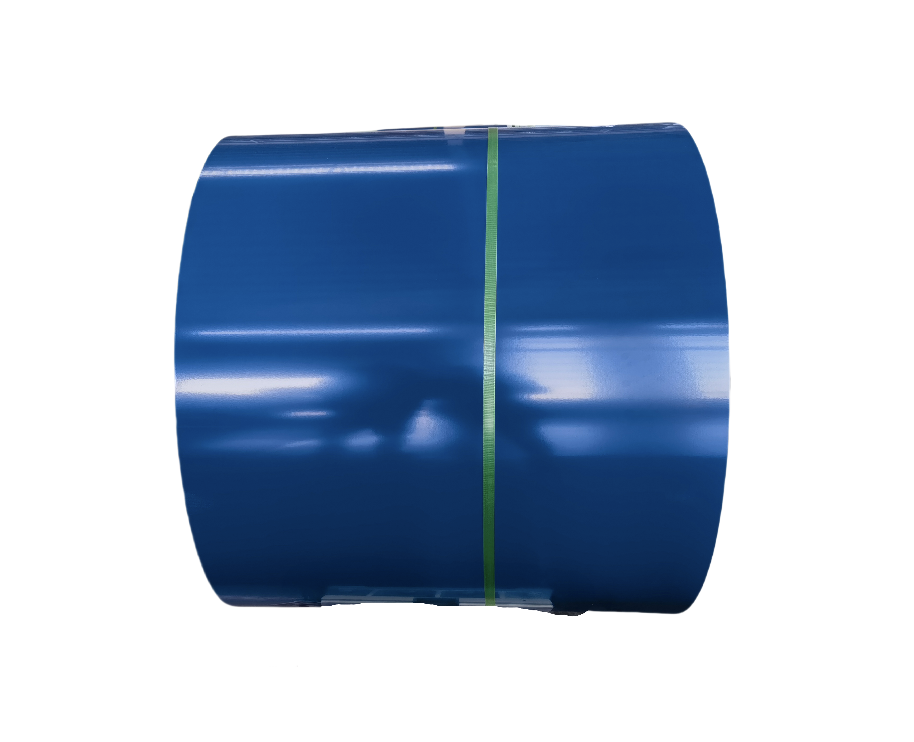

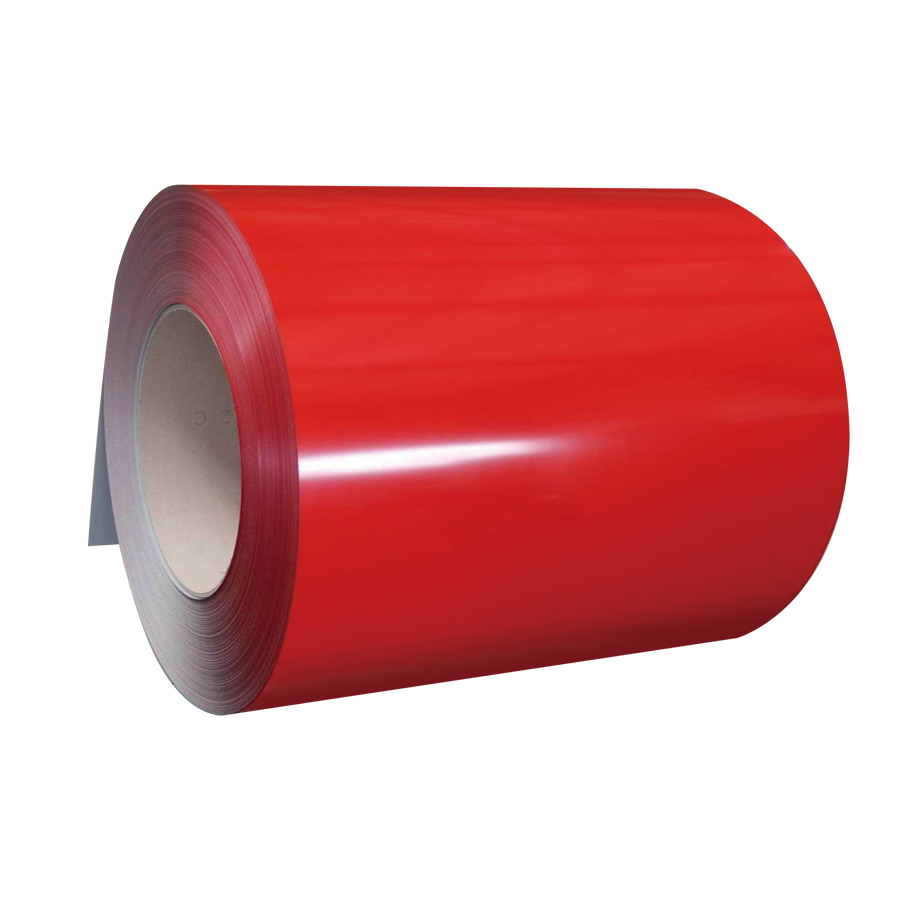

PPGL, or Pre-Painted Galvalume Steel Coil, is manufactured by applying a durable color coating over galvalume steel (Al-Zn alloy coated steel). With a base metal of galvalume steel, which contains 55% aluminum, 43.4% zinc, and 1.6% silicon, the coil is then coated with paints such as PE, HDP, SMP, or PVDF to enhance its corrosion resistance, weatherability, and visual appeal. Shinmade supplies high-quality PPGL coils widely used in the building and construction industries, particularly for metal roofing sheets, wall cladding, garage doors, and sandwich panel applications.
Product origin:
ChinaLead Time:
T/T; L/C at sight|
Lines： |
Pre-painted Steel Sheet |
|
Thickness (mm)： |
TC 0.25-1.0 |
|
Width (mm)： |
700-1250 |
|
Coil weight (MT)： |
3.0-8.0 |
|
Zinc coating： |
20-160g/㎡ |
|
Painting： |
Top 15-30μm Back 7-20μm |
|
Substrate： |
Al-Zn coated steel sheets; AZM steel sheets |
|
Painting system： |
PE、S-PE、SMP、S-MP、HDP、SDR、PVDF |
|
Strength： |
G250/G280/G300/G320/G345/G350/G550 |
|
MOQ： |
16 tons per size |
|
Payment term： |
T/T; L/C at sight |
Adopting energy-saving technology, the coating has a heat reflection function. Compared with the same color system of ordinary products, the reflectivity to sunlight heat energy is higher, which effectively reduces the roof temperature and saves electricity consumption.
Comparison of thermal reflection between ordinary coatings and thermal reflective coatings
Long-term self-cleaning function
The coating is hydrophilic. Rainwater can form a complete water film on the surface of the paint film, and the dust attached to the surface of the paint film can be easily removed.
*In the figure below, the smaller the contact angle of water, the better the hydrophilicity.
Subdivision products and quality assurance
Relying on more than 40 years of experience in the application of steel products, Shinmade has accumulated rich application data. The series of products launched can meet the diversified needs of customers, and provide solutions for industries and scenarios such as cleaning, animal husbandry, photovoltaics, marine environment, etc., which can better cope with environmental variables such as climate, temperature and lighting, and better add color to the building.
| Series name | Subdivision products | Coating system | Film |
Warranty period (corrosion-resistant perforation) |
| YYL | YYL Ultra-weatherproof and energy-saving board | SRP | AZ150 | 35years |
| YYL | YYL Fluorocarbon energy-saving board | PVDF | AZ160 | 45years |
| YYL | YYL Silicon modified energy-saving board | S-SMP | AZ150 | 40years |
As a trusted steel coil supplier from China, Shinmade has been delivering top-quality PPGL coils to customers across Southeast Asia, the Middle East, Africa, and South America. Our production lines and export logistics are optimized to meet the demands of international clients with strict standards for thickness tolerance, color uniformity, and corrosion resistance. We welcome OEM orders and long-term partnerships with distributors, contractors, and steel structure manufacturers worldwide.
Shinmade's PPGL coils not only offer high mechanical strength and formability but are also an environmentally friendly solution for green construction projects. With recyclable content and low VOC coatings, our products align with global sustainability standards. Whether used in eco-friendly housing or industrial zones with green certifications, Shinmade PPGL steel supports long-term energy efficiency and reduced maintenance costs.
Shinmade's Pre-Painted Galvalume Steel Coils are specially designed to meet the diverse needs of modern construction. Featuring excellent corrosion resistance and strong adhesion of paint, PPGL coils are the ideal choice for exterior building components such as roofing systems, wall panels, industrial warehouses, and prefabricated house structures. Our coils are suitable for both residential and industrial uses, combining aesthetics with long-term durability in harsh environments.
Shinmade offers PPGL steel coils in a variety of coating systems to suit different project needs. Our coils are available in PE (Polyester), HDP (High-Durability Polyester), SMP (Silicone-Modified Polyester), and PVDF (Polyvinylidene Fluoride) finishes. Each system is designed to withstand specific environmental conditions—from general weathering to high UV and chemical resistance. Whether you are designing urban infrastructure or rural housing, we help you choose the right coating for the job.
At Shinmade, we supply PPGL steel coils that deliver long-lasting performance under extreme weather conditions. The galvalume substrate provides superior protection against rust, while the top paint layer enhances both UV resistance and surface finish. Whether you need materials for coastal buildings or high-humidity environments, our PPGL coils ensure structural integrity, vibrant colors, and resistance to fading, chalking, and peeling over time.
As a trusted steel coil supplier from China, Shinmade has been delivering top-quality PPGL coils to customers across Southeast Asia, the Middle East, Africa, and South America. Our production lines and export logistics are optimized to meet the demands of international clients with strict standards for thickness tolerance, color uniformity, and corrosion resistance. We welcome OEM orders and long-term partnerships with distributors, contractors, and steel structure manufacturers worldwide.
Galvalume is a coating consisting of zinc, aluminium and silicon that is used to protect the metal from oxidation. And it would be less likely to rust than normal galvanized steel. These products are mainly used in the outdoor metal facades, panels and roofing.
Shinmade's PPGL coils not only offer high mechanical strength and formability but are also an environmentally friendly solution for green construction projects. With recyclable content and low VOC coatings, our products align with global sustainability standards. Whether used in eco-friendly housing or industrial zones with green certifications, Shinmade PPGL steel supports long-term energy efficiency and reduced maintenance costs.
Shinmade,focusing on product quality and customer service,consist on the service concept of “all for customer’s convenience, confidence and honor”. We aim to strengthen regional competitiveness and sheet-strip brand establishing by transforming and upgrading to green, ecology and intellectual industry.
